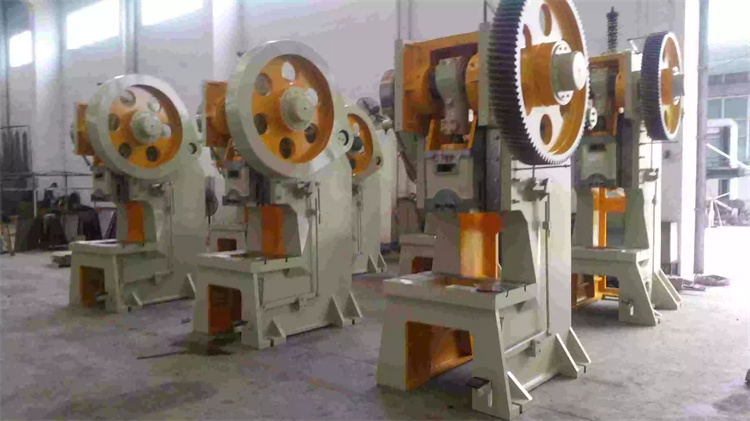

J23-40T Inclinable Punching Machine

The Series Punching machine adopt rigid rotated key clutch with simple structure, easy operation and maintenance, helical gear transmission, smooth operation and low impact.

J23 Series punching machine , first changed from traditional sliding bearing to ball bearing with higher wear resistance, avoid generating big gear noise due to brass faster abrasion.

J23 Series Open inclinable punching machine is unique in the industry with transmission brass gear.

Redesigned machine body with higher strength, at the same time, completed with ball beading transmission (small noise).

J23 Series punching machine is in pneumatic dual-balance cylinder structure with low balance fluctuation, balancing slider and upper die weight, and avoid machine shaking caused by after-mentioned weight.

Prevent gear backward force colliding and making noise, eliminating clearance between connecting rod and slider and reducing force component impact and abrasion.

Avoid slider falling accidents due to brake failure or connect rod fall off.

தொழில்நுட்ப அளவுருக்கள்

மாதிரி
J23-40T
Nominal Pressure
400
கே.என்
Nominal Pressure Stroke
4
MM
Max. closed height
350
MM
Slider Travel
100
MM
Die height adjustment
60
MM
மோட்டார் சக்தி
4
KW
Motor Speed
1420
R/MIN
Columns Interval
320
MM



◆ The models marked with character “A” is provided          ◆ It can be matched with various automatic feeding

with dual hand operation safety protection device,                      equipment for semi-automatic operation.

which can choose emergent braking device and

photoelectric protection.

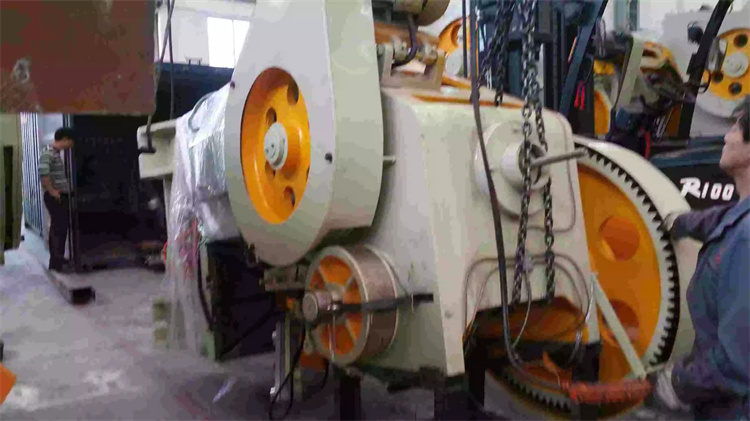

Machine Details

Press mould

Working with cutting mold and crimping mould, to get hinge billet (include shape forming ,hole drilling and crimping )
